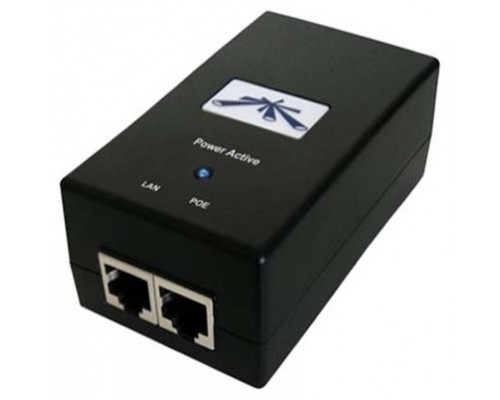

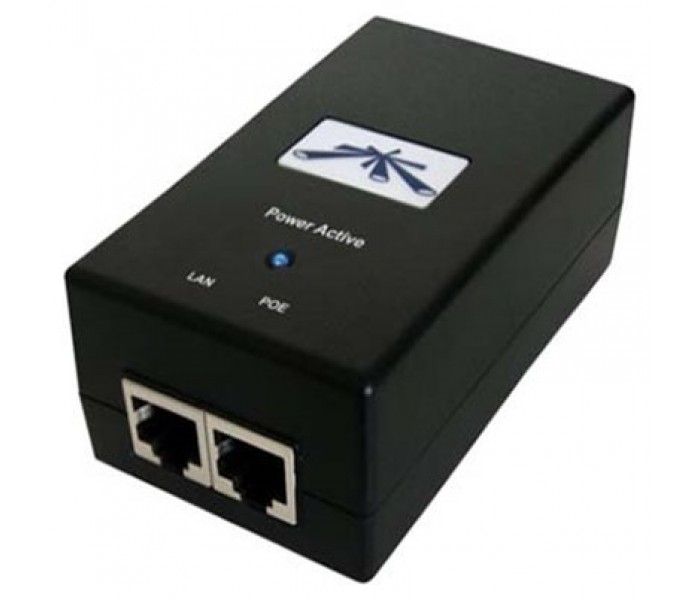

Alimentador PoE Ubiquiti POE-48-24W-G Gigabyte
Especificaciones:. . Dimensions: 92 x 60 x 33 mm. Weight: 158.5g. Output Voltage: 48VDC @ 0.5A. LAN Activity Indicator: No. Gigabit LAN Port: Yes. Remote Reset Capability: No. Reset Button: No. Rated Voltage: 100-240VAC @ 50/60Hz. Input Current:. 0.6A @120VAC,. 0.4A @240VAC. Inrush Current:. <65A Peak @120VAC,. <130A Peak @230VAC. Efficiency: 80+%. Output Ripple: 1% Max.. Switching Frequency: 65KHz. Line Regulation: ≤ 3%. Load Regulation: ≤ 5%. 2-Pair Powering: Pins 4,5 (+) and Pins 7,8(-). 4-Pair Powering: -. Operating Temperature: 0 to 40ºC. Storage Temperature: -30 to 70ºC. Operating Humidity: 35 to 95% Noncondensing. AC Connector: IEC-320 C6. Data IN/POE: RJ45 Shield Socket. Surge Protection: Difference and Common Mode. Clamping Protecion: 11V Data, 60V Power. Max. Surge Discharge: 1500A (8/20 µs) Power. Peak Pulse Current: 36A (10/1000 µs) Data. Shunt Capacitance: <5 pF data. Response Time: <1 ns. Certifications: CE, FCC, IC, UL.
Especificaciones:. . Dimensions: 92 x 60 x 33 mm. Weight: 158.5g. Output Voltage: 48VDC @ 0.5A. LAN Activity Indicator: No. Gigabit LAN Port: Yes. Remote Reset Capability: No. Reset Button: No. Rated Voltage: 100-240VAC @ 50/60Hz. Input Current:. 0.6A @120VAC,. 0.4A @240VAC. Inrush Current:. <65A Peak @120VAC,. <130A Peak @230VAC. Efficiency: 80+%. Output Ripple: 1% Max.. Switching Frequency: 65KHz. Line Regulation: ≤ 3%. Load Regulation: ≤ 5%. 2-Pair Powering: Pins 4,5 (+) and Pins 7,8(-). 4-Pair Powering: -. Operating Temperature: 0 to 40ºC. Storage Temperature: -30 to 70ºC. Operating Humidity: 35 to 95% Noncondensing. AC Connector: IEC-320 C6. Data IN/POE: RJ45 Shield Socket. Surge Protection: Difference and Common Mode. Clamping Protecion: 11V Data, 60V Power. Max. Surge Discharge: 1500A (8/20 µs) Power. Peak Pulse Current: 36A (10/1000 µs) Data. Shunt Capacitance: <5 pF data. Response Time: <1 ns. Certifications: CE, FCC, IC, UL.
ESPECIFICACIONES TÉCNICAS
Output Voltage: 48VDC at 0.5A
Input Voltage: 90-260VAC at 47-63Hz
Input Current: 0.3A at 120VAC, 0.2A at 230VAC
Inrush Current:
Efficiency: 70+%
Output Ripple: 1% Max
Switching Frequency: 200kHz
Line Regulation: +/- 0.5%
Load Regulation: +/- 1%
,Surge Protection: Common Mode
Clamping Protection: 11V Data, 77.5V Power
Max Surge Discharge: 1200A (8/20uS) Power
Peak Pulse Current: 36A (10/1000uS Data)
Shunt Capacitance:
Response Time: <,1nS
Interface
AC Connector: IEC-320 C6
Data In/POE RJ45 Shielded Socket
80% Current Indicator: Power LED will change color
Otras características ,
Temperatura funcionamiento: -10C to +60 C
Temperatura almacenamiento: -20 to +85 C
Humedad: -10C to +60 C
Medidas: (LXWXH) 85 x 55 x 33 (mm)
Peso 113,40 gramos
Certificación
Compliance UL, EN55022 (CISPR22) class B, Meets CE
Output Voltage: 48VDC at 0.5A
Input Voltage: 90-260VAC at 47-63Hz
Input Current: 0.3A at 120VAC, 0.2A at 230VAC
Inrush Current:
Efficiency: 70+%
Output Ripple: 1% Max
Switching Frequency: 200kHz
Line Regulation: +/- 0.5%
Load Regulation: +/- 1%
,Surge Protection: Common Mode
Clamping Protection: 11V Data, 77.5V Power
Max Surge Discharge: 1200A (8/20uS) Power
Peak Pulse Current: 36A (10/1000uS Data)
Shunt Capacitance:
Response Time: <,1nS
Interface
AC Connector: IEC-320 C6
Data In/POE RJ45 Shielded Socket
80% Current Indicator: Power LED will change color
Otras características ,
Temperatura funcionamiento: -10C to +60 C
Temperatura almacenamiento: -20 to +85 C
Humedad: -10C to +60 C
Medidas: (LXWXH) 85 x 55 x 33 (mm)
Peso 113,40 gramos
Certificación
Compliance UL, EN55022 (CISPR22) class B, Meets CE
Ubiquiti Inyector PoE POE-48-24W-G 48VDC 0.5A
- Marca: Ubiquiti
- Código: POE-48-24W-G
- Disponibilidad: 48 (24/48h)
